IoT gateway AG-702-LT-GL-V48
- Brand: Atreyo
- Product Code: AG-702-LT-GL-V48
- Availability: In Stock
₹18,585.00
- Ex Tax: ₹15,750.00
Download datasheet -
The documentation page provides detailed product specifications and complete instructions for use.
Please read it before using the product.
Online documentation

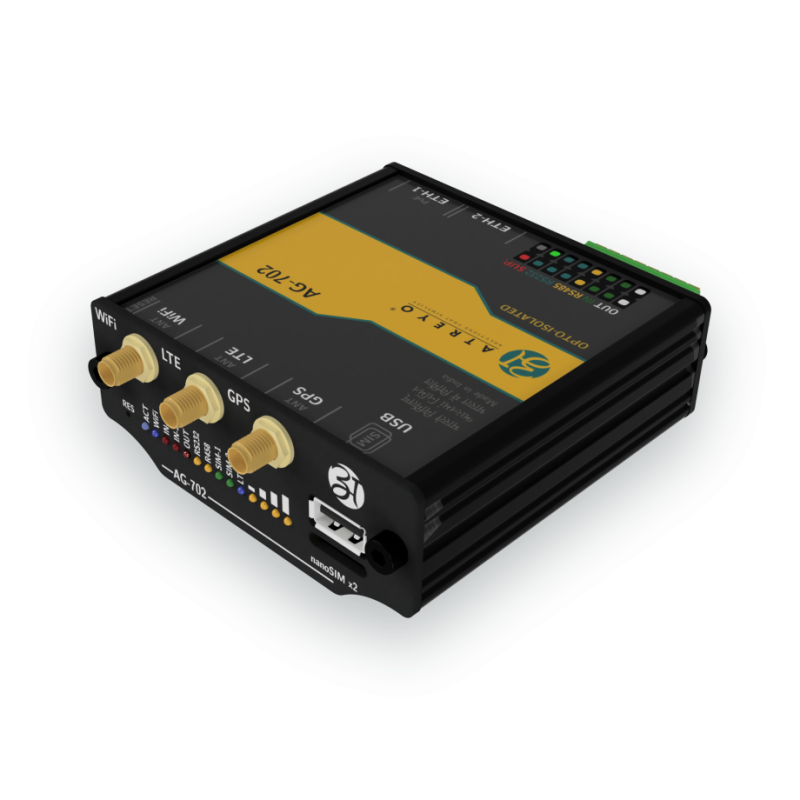

AG-702 is an innovative 4G LTE cellular gateway with 2 ethernet ports, WiFi, RS485, RS232 and digital I/Os working on OpenWRT system. It can connect in multiple ways to the Internet with dual SIM capability and a range of advanced functions for mission critical IoT or M2M applications. AG-702 also support MQTT protocol for cloud application and Modbus TCP/IP or RTU for industrial applications.
| Processor, RAM, storage | |
| Processor type | MIPS |
| Clock speed | 580Mh |
| Cellular | |
| 4G LTE | B1/B3/B5/B8/B34/B38/B39/B40/B41 |
| GPRS | 900/1800MHz |
| SIM | Dual SIM tray type |
| Location system | |
| GNSS type | GPS, Baidou |
| Serial interface | |
| RS485 | Opto isolated |
| RS232 | Opto isolated |
| WiFi | |
| WiFi | 2.4GHz |
| Interfaces | |
| Digital output | x1 NO relay, 3A/160V |
| Ethernet | x2 10/100mbps |
| Digital inputs | x2 opto-isolated, up to 30V DC |
| OS and applications | |
| Operating system | OpenWRT |
| Power supply | |
| Power Supply | 8-48V DC with reverse polarity protection, PoE (spare pare) |
| Physical characteristics | |
| Mounting type | DIN rail |
