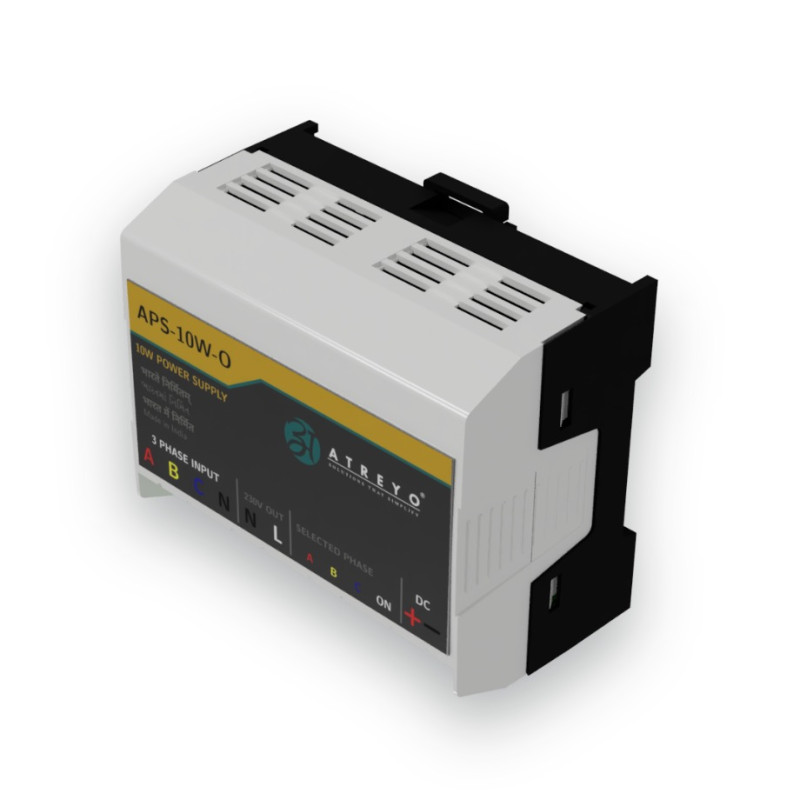

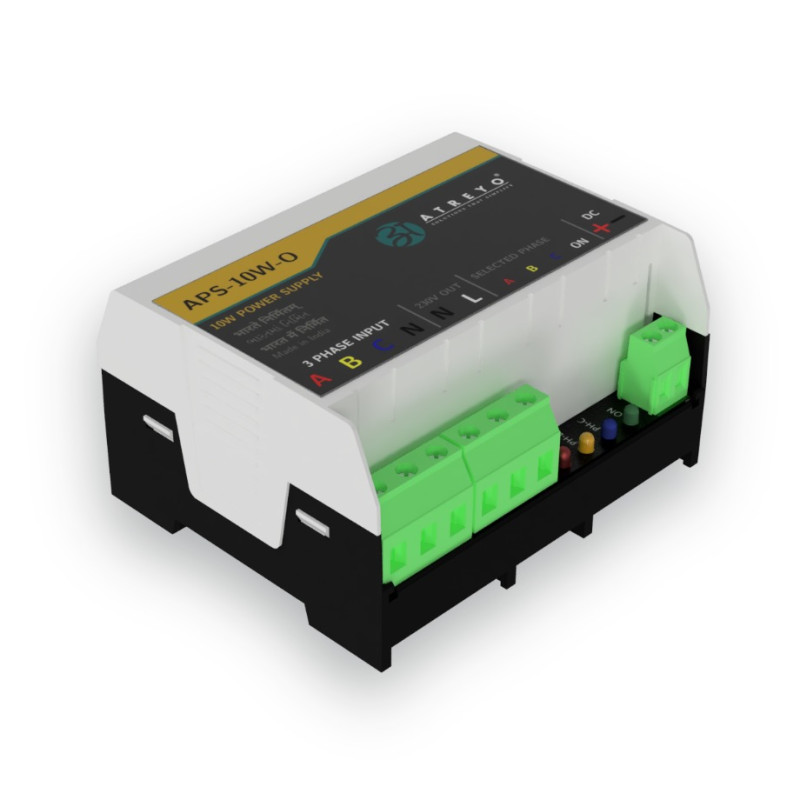

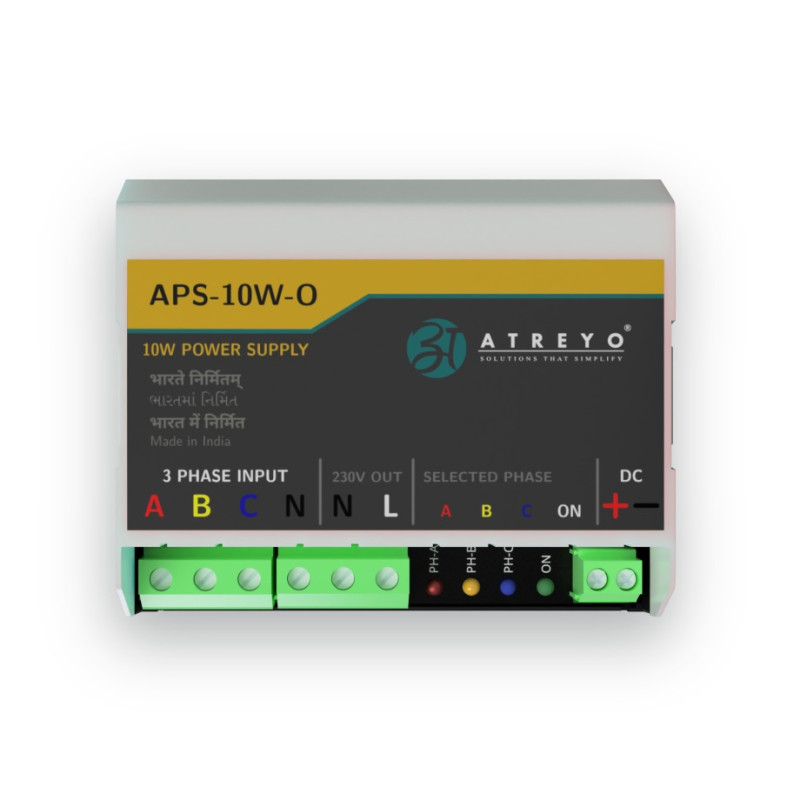

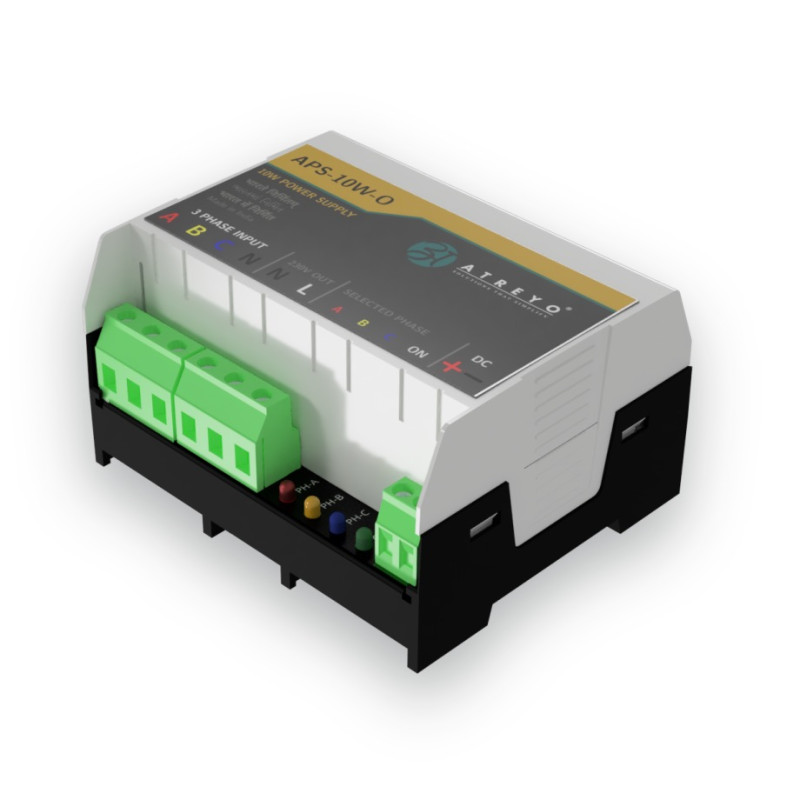

3 phase 10W power supply APS-10W-O-24
- Brand: Atreyo
- Product Code: APS-10W-O-24
- Availability: 1
₹4,425.00
- Ex Tax: ₹3,750.00
The APS-10W-O is 3 phase 10W power supply dedicated to use in application that need continue power source for IoT, Industrial controls, gateways, electrical panel controls etc. Work with single phase to 3 phase connection make ideal for critical control equipment. This model has extra power 230V phase selector output for powering 230V devices like energy meters etc.
The APS-10W-O is available with 5V, 12V and 24V DC
| Power supply | |
| Power Supply | 3 phase 85V to 440V AC |
| Protection | MOVs and fuses on all inputs Fuses on auxiliary and DC power out |
| Other functionality | |
| Indicators | 3 LED for selected phase indication, 1 green LED for power |
| Power out selector | Selector for power out 230V for auxiliary supply |
| Physical characteristics | |
| Size | 90mm x 75mm x 50mm |
| Casing material | ABS |

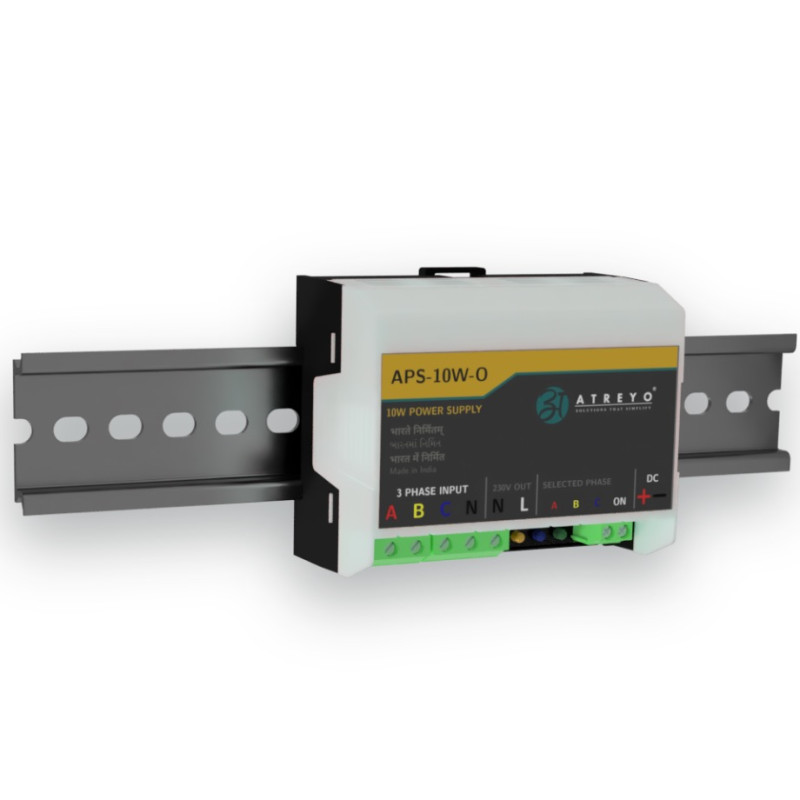

| Mounting type | DIN rail 35mm |
| Weight | 130g |
| Environmental specification | |
| Operating temperature | -25 ~ 70°C (-13 ~ 158°F) |
