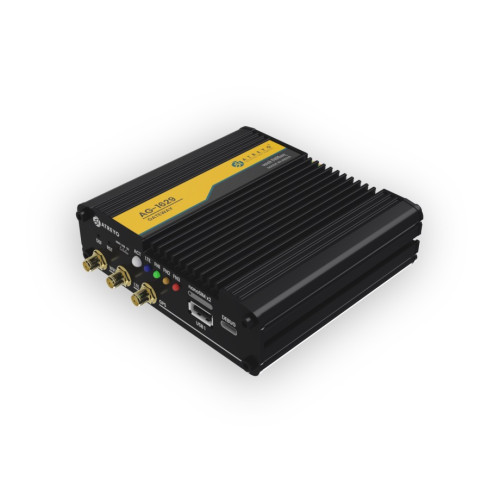

IoT gateway AG-1629-LT-GL
- Brand: Atreyo
- Product Code: AG-1629-LT-GL
- Availability: In Stock
₹32,745.00
- Ex Tax: ₹27,750.00
Programmable industrial IoT Gateway with support for Debian Linux and OpenWRT Linux systems. It provides the ability to install custom scripts and use ready-made scripts. Also, it works under the control of OpenWRT system. In Debian under the control of the NodeRED system, it gives unlimited possibilities for easy creation of gateway operation logic. It also has a cellular modem with support for 2 SIM cards. It has two LAN, two isolated RS485 interfaces and four opto-isolated I/Os. It also has a USB type-C port for debugging and a boot source selector.
| Processor, RAM, storage | |
| Processor type | ARM Cortex-A7 Quad core |
| Clock speed | 960Mhz |
| Cellular | |
| 4G LTE | B1/B3/B5/B8/B34/B38/B39/B40/B41 |
| GPRS | 900/1800MHz |
| SIM | Dual SIM tray type |
| Location system | |
| GNSS type | GPS, Baidou |
| Serial interface | |
| RS485 | x2 opto isolated |
| Interfaces | |
| Digital output | x4 NO (normal open) opto-mosfet type, up to 800mA 50V (interchangeable with inputs) |
| Ethernet | x2 10/100Mbps |
| Digital inputs | x4 opto-isolated, up to 30V DC (interchangeable with outputs) |
| OS and applications | |
| Operating system | Debian Linux |
| Power supply | |
| Power Supply | 8-48V DC with reverse polarity protection |
| Other functionality | |
| Development functions | USB type-C for debug, boot switch for boot source selection |
| Physical characteristics | |
| Casing material | Aluminium |
| Mounting type | DIN rail |
