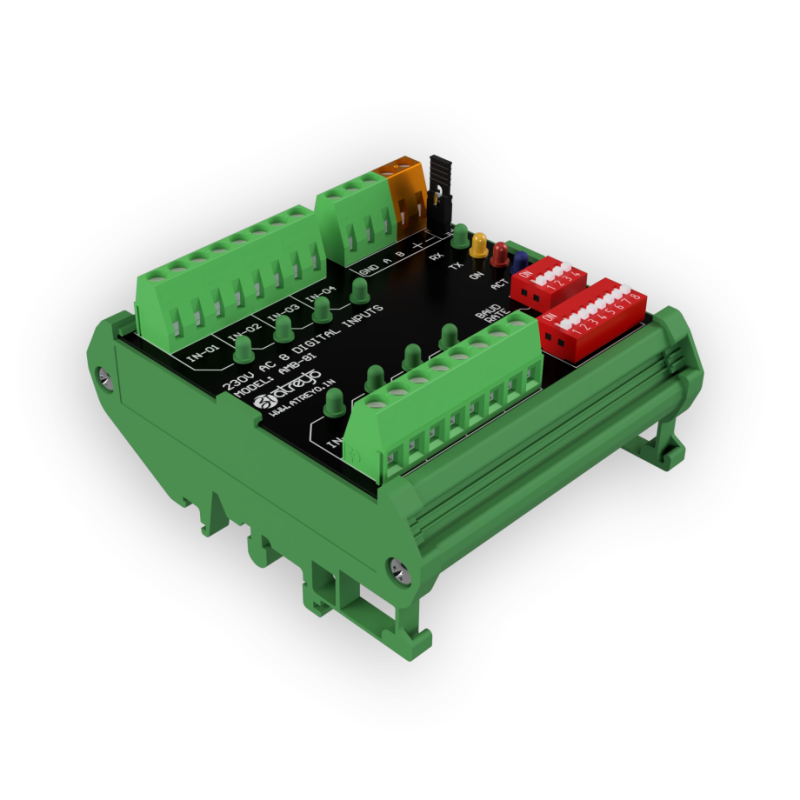

Modbus I/O expander AMB-8I-AC
- Brand: Atreyo
- Product Code: AMB-8I-AC
- Reward Points: 600
- Availability: 1
₹2,885.10
- Ex Tax: ₹2,445.00
8 digital input expander with high voltage range from 60V AC up to 500V AC to Modbus RTU. Input also support DC voltage in same voltage range. The power supply range is 8 to 36V and accept DC or AC voltage.
| Serial interface | |
| RS485 | x1, baudrate 4800bps ~ 128000bps |
| Other | 120 Ohm termination jumper |
| Interfaces | |
| Digital inputs | x8 with 60-500V AC range |
| OS and applications | |
| Configuration | 8 way DIP switch for Modbus address and 4 way DIP switch for baudrate |
| Communication protocol | Modbus RTU |
| Other functionality | |
| Indicators | x8 inputs, power, RX, TX, activity |
| Physical characteristics | |
| Size | 120mm × 90mm × 50mm |
| Casing material | PVC |
| Mounting type | DIN rail |
| Weight | 140g |
| Environmental specification | |
| Working temperature | -10 ~ 75°C (-14 ~ 167°F) |
| Storage temperature | -40 ~ 85°C (-40 ~ 176°F) |
