USB to 4 x RS485 isolated interface
- Brand: Atreyo
- Product Code: ADI-U4RS-1
- Availability: 5
₹4,425.00
- Ex Tax: ₹3,750.00
Features
- 4x RS485 ports independently isolated
- Custom baudrate support
- Baudrate 600 to 921600
- RX and TX indicators for each serial port
- USB to serial chip FT4232
- Supply direct from USB
- USB 2.0 type B reliable connectors
- Industrial design
- DIN rail mounting

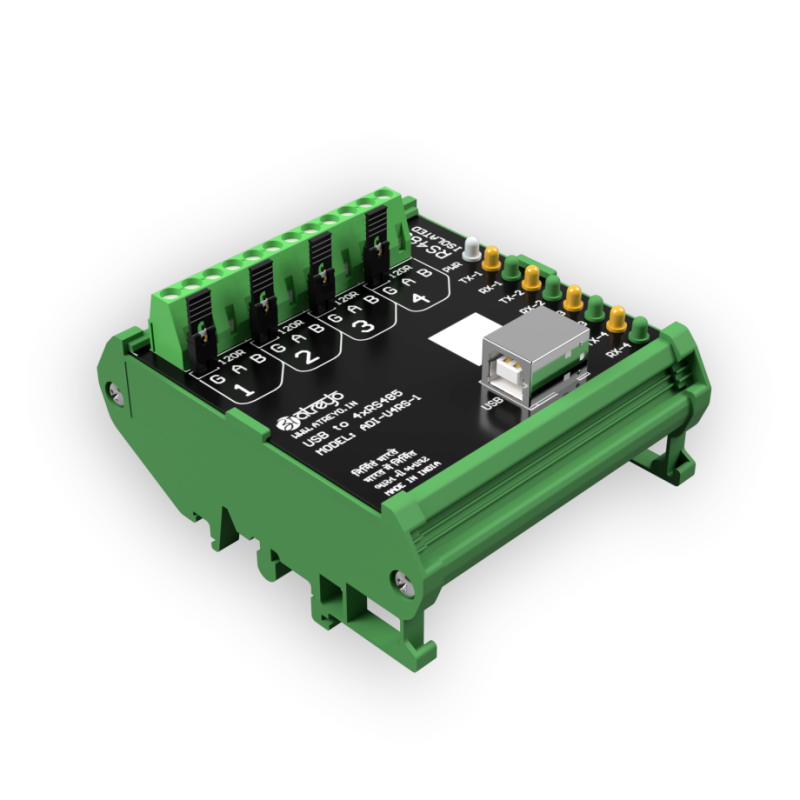

The interface ADI-U4RS-1 is a USB to four independent RS485 serial ports. Each port is separately optically isolated and protected against electrostatic discharge by TVS, GDT and PTC fuses. The interface can run on Linux, MAC OS and Windows. Highest quality FDI chips used.
| Serial interface | |
| RS485 | 4x Isolated RS485. Each port is separately optically isolated and protected against electrostatic discharge by TVS, GDT and PTC fuses. Include 120 Ohm termination jumpers. |
| Other | 120 Ohm termination jumpers |
| Interfaces | |
| USB | USB 2.0, type B connector |
| Other functionality | |
| Indicators | 1x power, RX and TX for all channels |
| Physical characteristics | |
| Casing | Open type |
| Casing material | ABS |
| Mounting type | DIN rail |
| Weight | 80g |
| Environmental specification | |
| Operating temperature | -20 ~ 65°C (-4 ~ 149°F) |
