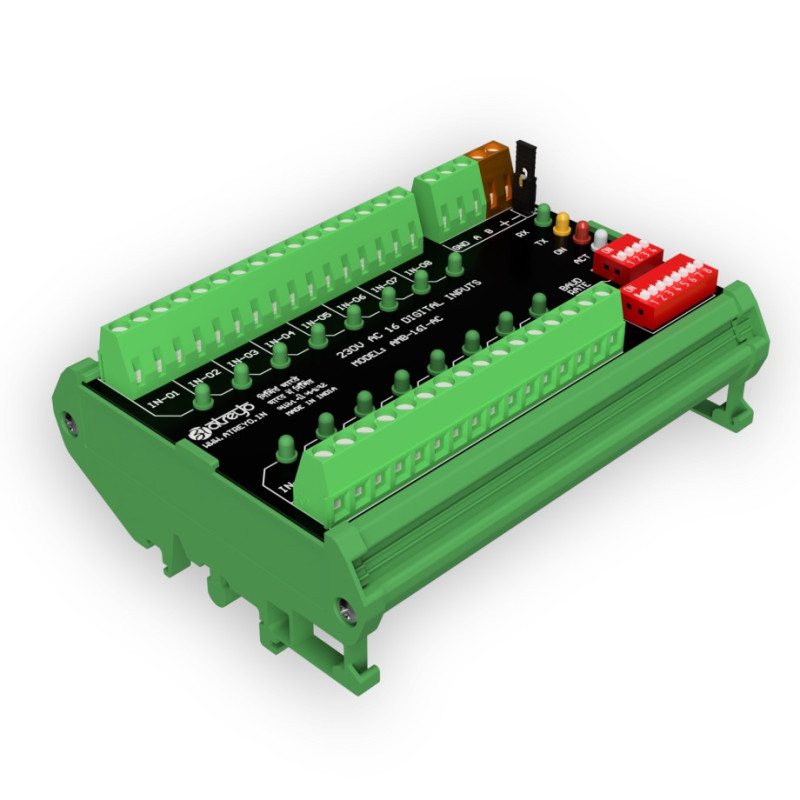

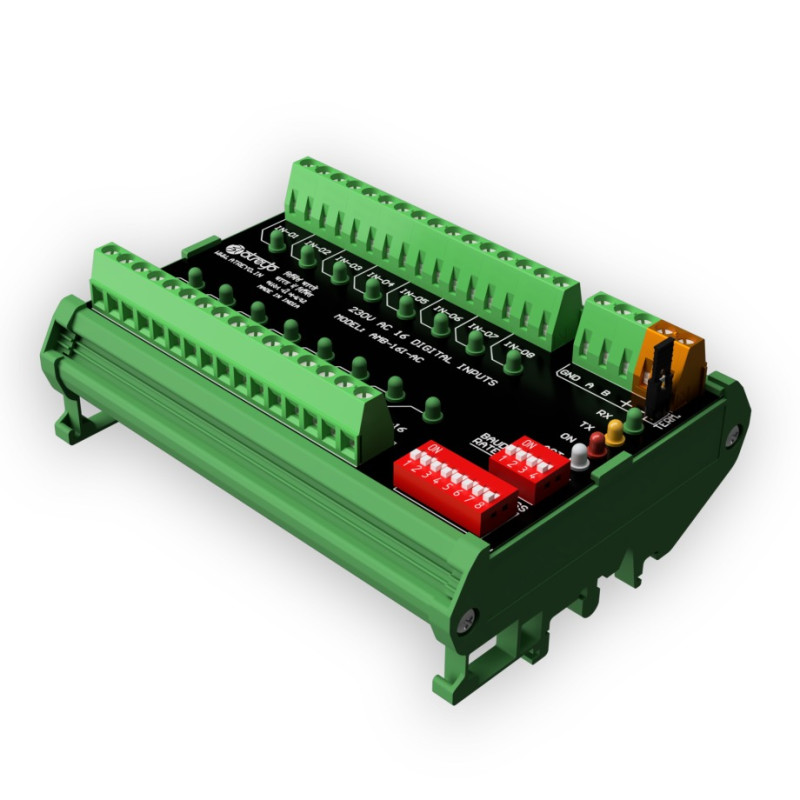

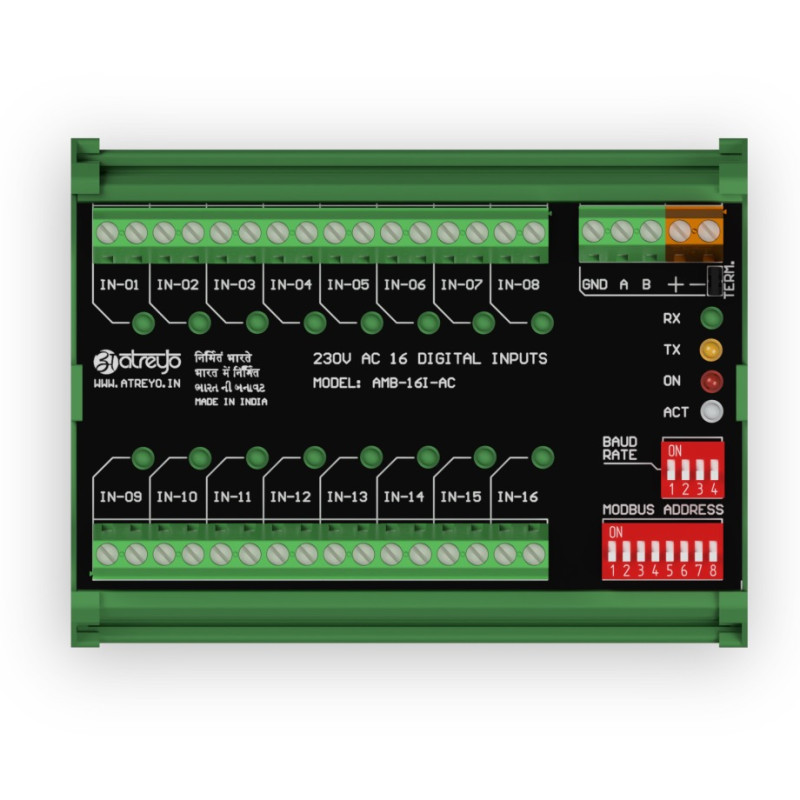

Modbus I/O expander AMB-16I-AC
- Brand: Atreyo
- Product Code: AMB-16I-AC
- Reward Points: 600
- Availability: 1
₹3,451.50
- Ex Tax: ₹2,925.00
Digital isolated input expander to Modbus RTU with high voltage range of inputs - 60V AC to 500V AC. The input also accepts DC voltage within the same range. Used when it is necessary to detect the presence of high voltage in electrical panels. The power supply accepts either DC or AC voltage and has a range of 8 to 36V.
| Serial interface | |
| RS485 | x1, baudrate 4800bps ~ 128000bps |
| Other | 120 Ohm termination jumper |
| Interfaces | |
| Digital inputs | x16 with 60-230V AC range |
| OS and applications | |
| Configuration | 8 way DIP switch for Modbus address and 4 way DIP switch for baudrate |
| Communication protocol | Modbus RTU |
| Other functionality | |
| Indicators | x16 inputs, power, RX, TX, activity |
| Physical characteristics | |
| Size | 120mm × 90mm × 50mm |
| Casing material | PVC |
| Mounting type | DIN rail |
| Weight | 140g |
| Environmental specification | |
| Working temperature | -10 ~ 75°C (-14 ~ 167°F) |
| Storage temperature | -40 ~ 85°C (-40 ~ 176°F) |
